The RideAnalyzer is an adjustment aid for elevators, with automativ evaluation of measurement results
The RideAnalyzer is a new measurement tool with an intuitive operating concept that allows for an easy and quick measurement and analysis of an elevator ride. This handy device combines measuring sensors and an evaluation unit in a robust plastic casing. Connection to a laptop or an external evaluation unit is not necessary.
Thanks to the automatic evaluation of measurement results, the device can be used without the need for time-consuming training/ instruction and the information required to adjust or troubleshoot the elevator system is supplied quickly and at low cost.
The RideAnalyzer is therefore equally suitable for fitters, planners and surveyors. It is the ideal tool for the efficient adjustment of new systems for checking ride characteristics, inspecting installations and locating faults.

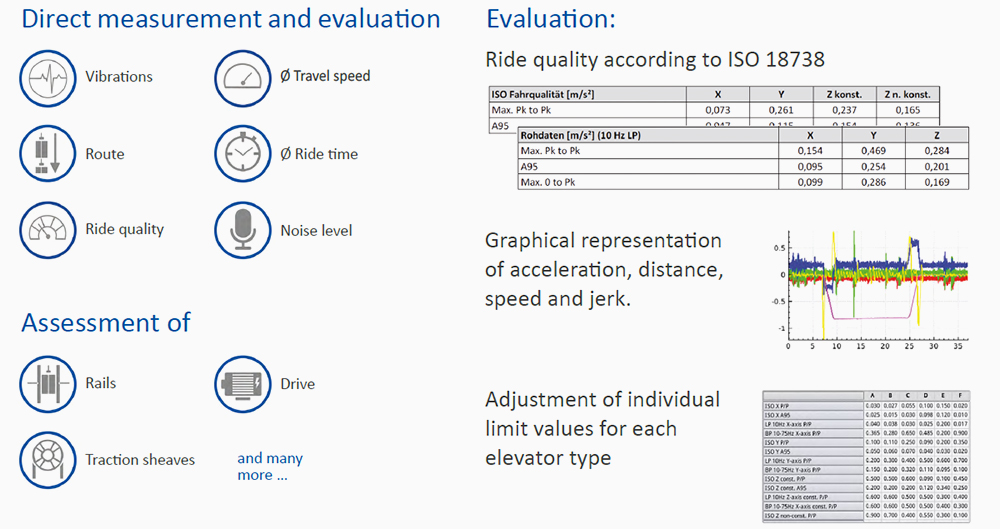

The RideAnalyzer enables:
- Documentation of ride quality according to ISO 18738
- Setting of concrete ride parameters
-
Measurement of acceleration, deceleration, jerk, speed and distance
-
Troubleshooting when defects occur like, for example, rail joints
-
Adjusting of individual limit values for each elevator type
- Creates a report

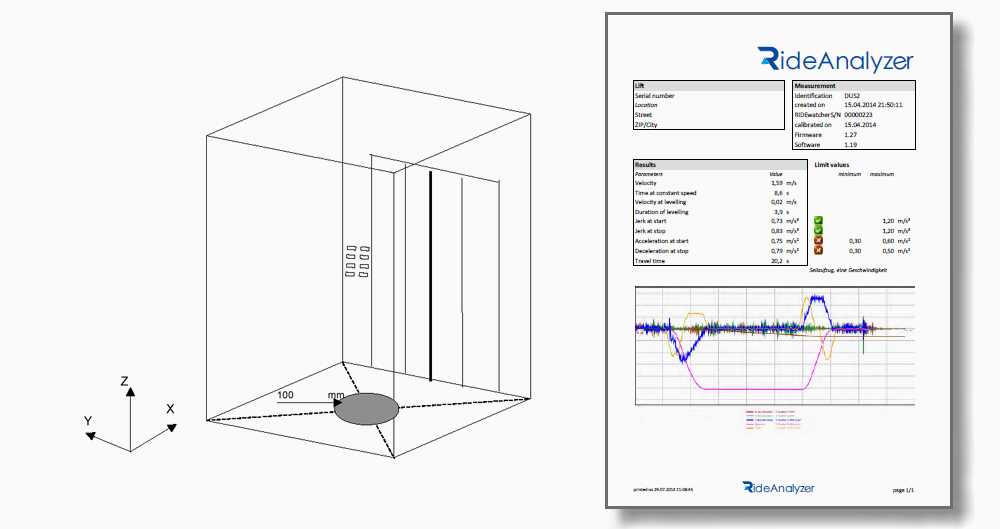

In order to record the ride characteristics of an elevator using RideAnalyzer, the sensor is placed in the middle of the cabin and a travel command is given.
As soon as the journey has finished, a ride profile, according to ISO 18738, and other data like speed and acceleration profiles will be made available. These results will be immediately evaluated based upon specified characteristic values and necessary system setting corrections can be made as quickly as possible.
